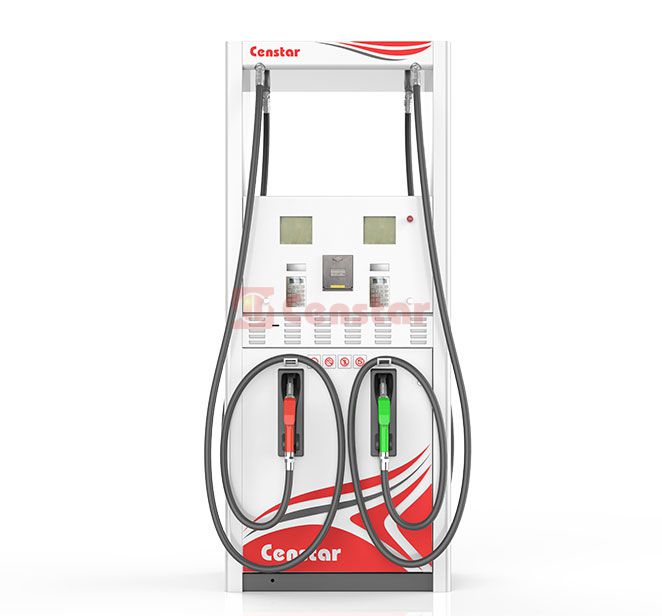

CS46 Legend Series Fuel Dispenser
CS46 Legend Series Fuel Dispenser1

CS46 Legend Series Fuel Dispenser

Fuel Dispenser Available Options
International Solenoid Valve
Breakaway and Swivel
IC Card Payment Terminal
English Receipt Printer
Stainless Steel Arm Side and Canopy
Easy ways to get the answers you need.Send Email [email protected]

Description

HIGH SECURITY SECURED WATERPROOF AND DUSTPROOF

1、6200 Main Board: Latest Electronic Technology, More Safety and Stability

2、Intelligent Voice Broadcast System, Printer Bill System, Full-service Customers

3、Adjustable Display: Brightness can be adjusted according to the light

4、Pos Smart Upgrade Simply Maintenance

5、High-precision Flow Meter: Shell use unique technical processing, moistureproof,rustproof, All the advanced design assure outstanding performance no malfunctionswithin 5,000,000 liters, life-cycle can reach 10,000,000 liters and wide temperatureadoption from-40C- 55C.

Fuel Dispenser Technical Parameters

  • Accuracy: t0.25%
  • Flow Rate Range: 5-50L/Min or 8-80L/Min
  • Intake Vacuum:> 54KPA
  • Display:sales 0.00 to 9999999
  • Noise: < 80dB(A)
  • Volume:0.00 to 99999.99
  • Unit Price: 0.00 to 9999 ( Decimal point position can be chosen)
  • Electrical Totalizer: 0.00 to 99999999.99
  • Electrical Mechanical Totalizer: 0.00 to 999999
  • Power Supply: AC380V or AC220V with a changing range from-15% to + 10%
  • Motor's Output Power: 750W and 1000W
  • Working Environmental Temperature: -40°C to+55

Parameter

CS46-Legend Series Fuel Dispenser Congfiguration Table


Pump TypeNozzleOil ProductDisplayFlow Rate (L/Min)
1H 1PGear Pump1125-508-80120
2H 1P212 or 45-50

2H 2P222 or 45-508-80
4H 2P4245-50

1H 1PSubmersible Pump1125-508-80120
2H 1P212 or 45-508-80
2H 2P222 or 45-508-80
4H 2P4245-508-80
Net Size:982*640*2370mm (L*W*H)Package Size:1040*850*2480mm (L*W*H)
