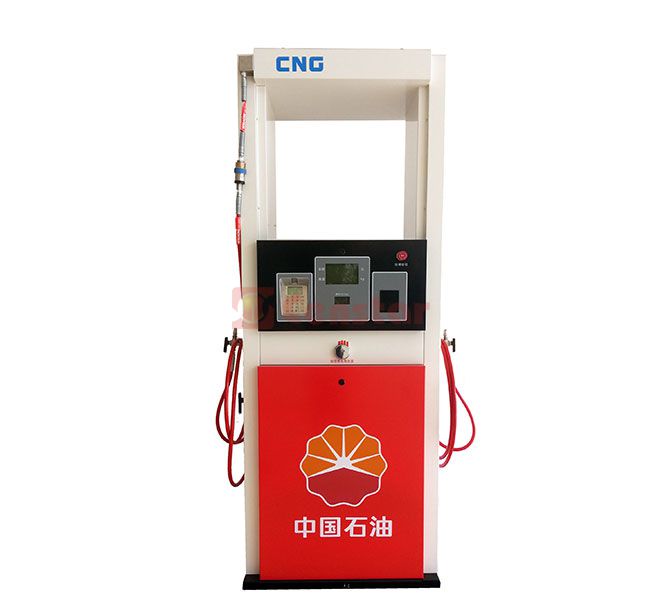

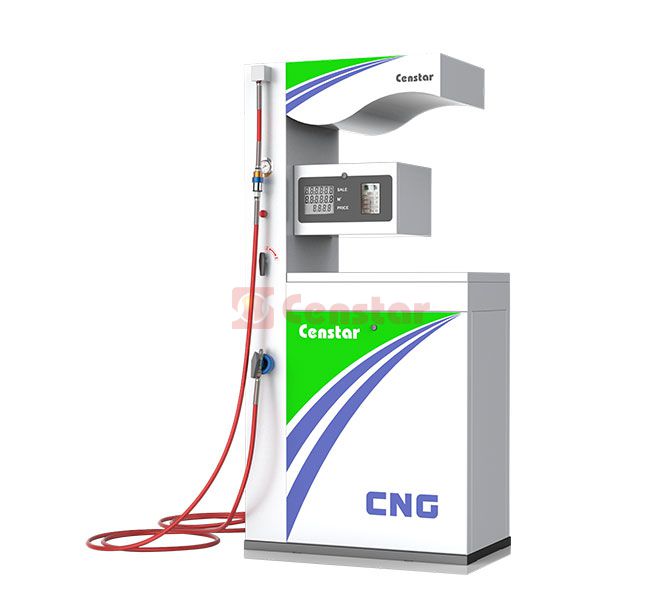

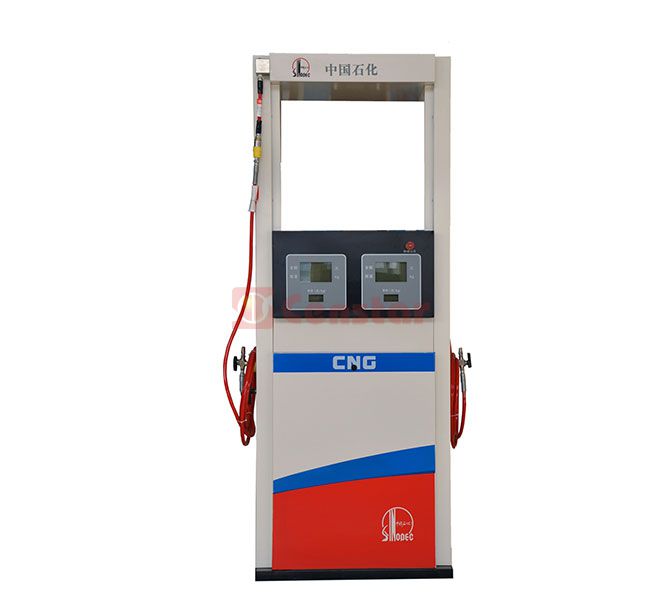

CNG Dispenser
CNG Dispenser
CNG Dispenser

CNG Dispenser

CNG Dispenser Model Selection
Intake type: one line/two lines/three lines
Standard flow:(1~30)Nm3/min or(1~25)kg/min
Heavy duty:(1~40)Nm3/min or(1~28)kg/min
Nozzle: single/ double/four
Hung nozzle: position: side or front
Easy ways to get the answers you need.Send Email [email protected]

Description

CNG Dispenser Main features

· High-pressure instrumentation of world-renowned brand

· Digitalsignaltransmission filling pressure, accuracy and stability

· Repeated refilling data to prepare for inspection

· Circuit boards, explosion-proof electricalmodular design, easy maintenance

· Allfilling machine can be implemented computer management, to prevent filling stations loopholes in management

· When The voltage is too high, the electricalpart of the over-voltage protection, to effectively prevent damage to electricalappliances caused by externalvoltage instability

· The gas hose equipped with a return to pulloff the protective device, to eliminate the dangers caused by misuse in the process of refilling

· The world's most advanced CNG dedicated mass flow meter, measurement precision, and with temperature compensation

· On the pressure gauge can display the pressure data

· Automatically shut down when the pipeline pressure loss, over pressure or overflow

· Can be matched with any imported compressor

CNG Dispenser Model Selection

  • Intake type: one line/two lines/three lines
  • Standard flow:(1~30)Nm3/min or(1~25)kg/min
  • Heavy duty:(1~40)Nm3/min or(1~28)kg/min
  • Nozzle: single/ double/four
  • Hung nozzle: position: side or front

Parameter

CNG Dispenser Parameters

Suitable mediumCNGExplosion-proof ratingExdeibmbⅡAT4 Gb
Maximum working pressure25MPaRated pressure25MPa
Compression strength37.5MPaAccuracy±1.0%
Environment temperature-35℃~+55℃Environment humidity30%~95%RH
Single measurement range0~9990.00 kg or moneyCumulative metering range0~42949672.95 kg or money
Power supplyAC 220V (-15%~10%)/ 50Hz(±1Hz)Flow meteruse imported mass flowmeter with temperature sensor to compensate
Packing size2400mm×1120mm×700mmNet weight220kg


MODElCSJQD11CSJQD1SCSJQD14CSJQD21CSJQD2SCSJQD24CSJQD31CSJQD3SCSJQD34
lINE111222333
NOZZlE124124124
