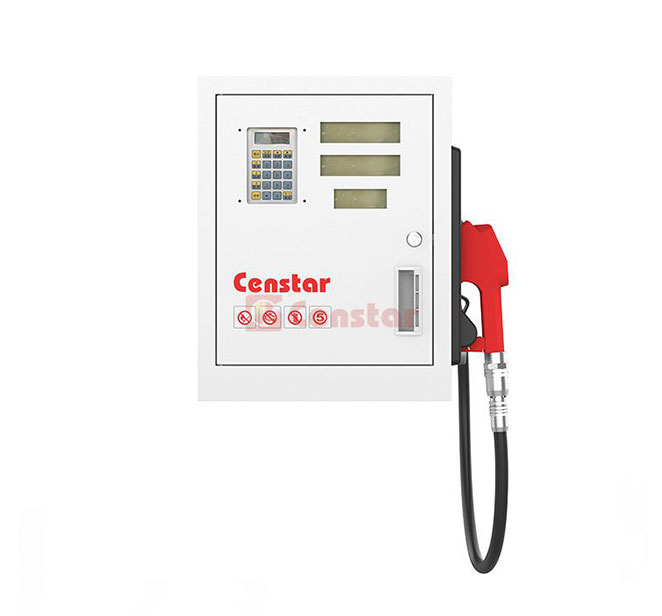

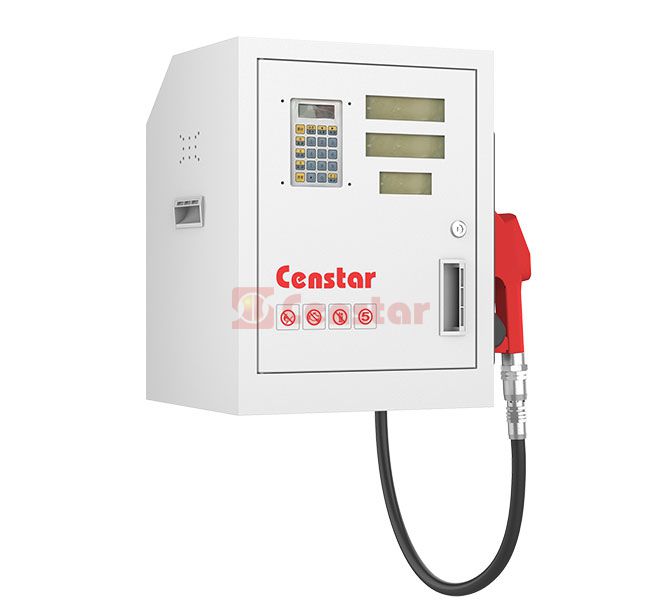

CS20 Series Fuel Dispenser
- Fuel Dispenser Available Options
- International Solenoid Valve
- Breakaway and Swivel
- IC Card Payment Terminal
- English Receipt Printer
- Stainless Steel Arm Side and Canopy
Description
HIGH SECURITY SECURED WATERPROOF AND DUSTPROOF
1、6200 Main Board: Latest Electronic Technology, More Safety and Stability
2、Intelligent Voice Broadcast System, Printer Bill System, Full-service Customers
3、Adjustable Display: Brightness can be adjusted according to the light
4、Pos Smart Upgrade Simply Maintenance
5、High-precision Flow Meter: Shell use unique technical processing, moistureproof,rustproof, All the advanced design assure outstanding performance no malfunctionswithin 5,000,000 liters, life-cycle can reach 10,000,000 liters and wide temperatureadoption from-40C- 55C.
Fuel Dispenser Technical Parameters
- Accuracy: t0.25%
- Flow Rate Range: 5-50L/Min or 8-80L/Min
- Intake Vacuum:> 54KPA
- Display:sales 0.00 to 9999999
- Noise: < 80dB(A)
- Volume:0.00 to 99999.99
- Unit Price: 0.00 to 9999 ( Decimal point position can be chosen)
- Electrical Totalizer: 0.00 to 99999999.99
- Electrical Mechanical Totalizer: 0.00 to 999999
- Power Supply: AC380V or AC220V with a changing range from-15% to + 10%
- Motor's Output Power: 750W and 1000W
- Working Environmental Temperature: -40°C to+55
Parameter
CS20 Series Fuel Dispenser Congfiguration Table(CS20)
| Pump Type | Nozzle | Oil Product | Display | Flow Rate (L/Min) | |||
| 1H 1P | Submersible Pump | 1 | 1 | 1 | 5-50 | 8-80 | |
| Net Size:476*426*550mm (L*W*H) | Package Size:540*480*650mm (L*W*H) | ||||||
