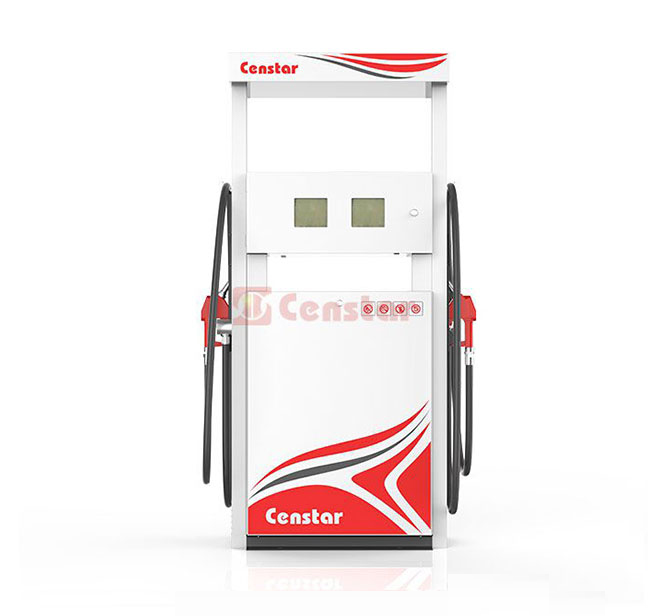

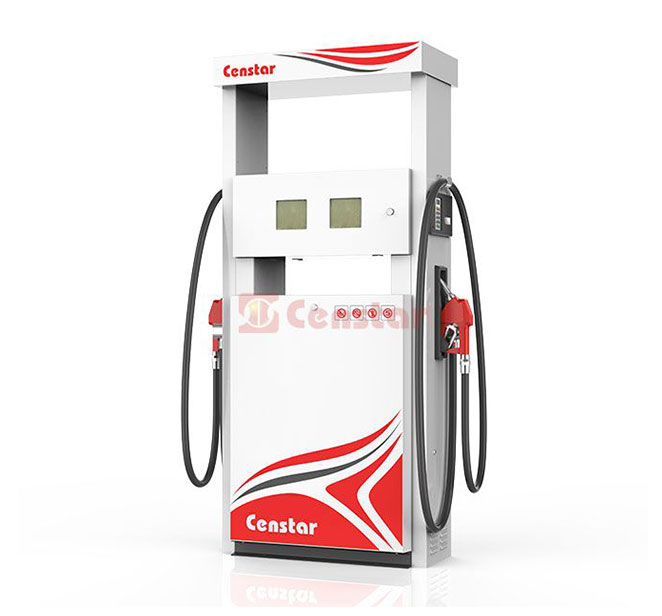

C Man Series Fuel Dispenser

Fuel Dispenser Available Options: International Solenoid Valve; Breakaway and Swivel; IC Card Payment Terminal; English Receipt Printer; Stainless Steel Arm Side and Canopy

Easy ways to get the answers you need.Send Email [email protected]

Whatsapp Message Brochure

Description

HIGH SECURITY SECURED WATERPROOF AND DUSTPROOF

1、6200 Main Board: Latest Electronic Technology, More Safety and Stability

2、Intelligent Voice Broadcast System, Printer Bill System, Full-service Customers

3、Adjustable Display: Brightness can be adjusted according to the light

4、Pos Smart Upgrade Simply Maintenance

5、High-precision Flow Meter: Shell use unique technical processing, moistureproof,rustproof, All the advanced design assure outstanding performance no malfunctionswithin 5,000,000 liters, life-cycle can reach 10,000,000 liters and wide temperatureadoption from-40C- 55C.

Fuel Dispenser Technical Parameters

Accuracy: t0.25%
Flow Rate Range: 5-50L/Min or 8-80L/Min
Intake Vacuum:> 54KPA
Display:sales 0.00 to 9999999
Noise: < 80dB(A)
Volume:0.00 to 99999.99
Unit Price: 0.00 to 9999 ( Decimal point position can be chosen)
Electrical Totalizer: 0.00 to 99999999.99
Electrical Mechanical Totalizer: 0.00 to 999999
Power Supply: AC380V or AC220V with a changing range from-15% to + 10%
Motor's Output Power: 750W and 1000W
Working Environmental Temperature: -40°C to+55

Parameter

C Man Series Fuel Dispenser Congfiguration Table (C Man)

	Pump Type	Nozzle	Oil Product	Display	Flow Rate (L/Min)
1H 1P	Gear Pump	1	1	2	5-50	8-80	120
2H 1P		2	1	4	5-50
2H 2P		2	2	4	5-50	8-80
1H 1P	Submersible Pump	1	1	2	5-50	8-80	120
2H 1P		2	1	4	5-50	8-80
2H 2P		2	2	4	5-50	8-80
Net Size:10385002070mm (LWH)			Package Size:10855202225mm (LWH)
